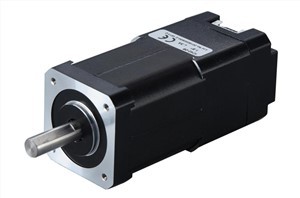

Ib yam khoom hluav taws xob specifications
|
parameter |
IEC 57 Nws |
|
|
Cov zis tam sim no (peak value) |
A (tus nqi ncov), lub neej ntawd yam tsawg kawg nkaus tuav tam sim no yog 3.0A (tus nqi ncov), piv txwv li qhov tuav tam sim no yog 50%. Qhov tam sim no nce los yog txo nrog kev hloov ntawm kev thauj khoom lossis ceev. Yog tias tus tuav tam sim no feem pua tau teem rau 60%, qhov tsawg kawg nkaus tuav tam sim no yuav yog 3.6A (tus nqi ncov). Qhov feem pua tuav tam sim no tuaj yeem nyeem, hloov kho thiab khaws cia los ntawm ECAT tsheb npav. Nws raug pom zoo kom tsis pub tshaj 75%. Yog hais tias lub cev muaj zog cua sov yuav tsum tau txo, qhov feem pua tuav tam sim no tau qhia tias yuav tsum tau teem rau 30-40%. Lub neej ntawd stand-by tam sim no yog 1.5A (nruab nrab), uas yog 25% ntawm qhov tam sim no sawv ntsug, uas tau nyeem, hloov kho thiab khaws cia rau ntawm lub tsheb npav ECAT zoo li qhov feem pua ntawm cov tuav tam sim no. Lub stand-by tam sim no yog tam sim no thaum lub cev muaj zog tsis ua hauj lwm, thiab nws yog xoom yog hais tias lub disconnection yog enabled. |
|
|
Sib piv lub cev muaj zog |
Lub hauv paus, tus qauv teeb tsa 1N M thiab 2.5N. M, 3.0NM tuaj yeem xaj |
|
|
muab hluav taws xob |
DC 20 ~ 75Vdc, muaj peev xwm tiv taus 100Vdc voltage sab hauv, thiab 24Vdc thiab 36V DC fais fab mov raug pom zoo. |
|
|
Tus lej ntawm kab encoder |
Kab, default 1000 kab, tus tsav tsheb sab hauv mus rau lub encoder plaub zaug zaus, default encoder nrog Z teeb liab, encoder Z teeb liab rov qab mus rau xoom muaj nuj nqi, xaiv 17 ntsis, 23 ntsis ntau lub voj voog tus nqi encoder. |
|
|
Qhov Loj (L * W * H mm) |
Xa mus rau cov duab kos duab |
|
|
hnyav |
2-3Kg |
|
|
Input teeb liab |
Keeb kwm input, forward limit, negative limit, mem tes capture, probe |
|
|
tso zis teeb liab |
Nres tswj cov zis (tuaj yeem teeb tsa raws li qhov chaw teeb liab tso tawm los ntawm tsheb npav), ceeb toom tawm |
|
|
Tswb muaj nuj nqi |
Overcurrent, overvoltage, undervoltage, encoder out-of-tolerance, thiab lwm yam |
|
|
Debugging software |
TQK Motion, yooj yim ECAT chaw nres nkoj lub khoos phis tawj debugging software, uas tuaj yeem nyeem, teeb tsa thiab txuag tsav tsis tau |
|
|
Kev pabcuam ib puag ncig |
sijhawm |
Nws yuav tsum tsis txhob muab tso rau ntawm lwm yam khoom siv cua sov. Plua plav, roj pos huab, corrosive gas, qhov chaw uas muaj av noo thiab muaj zog vibration yuav tsum raug zam. Cov pa roj thiab cov plua plav conductive raug txwv; |
|
Kev pabcuam kub |
-10 ~ 50 degree (qis ua haujlwm kub tuaj yeem kho tau) |
|
|
Txuag kub |
-20 degree ~ 65 degree |
|
|
av noo |
RH ~ 90% |
|
|
kev vibration |
Hz/0.15mm |
|
|
nruab |
Vertical lossis kab rov tav installation |
|
|
Qib tiv thaiv |
IP65, tsuas yog txaws-pov thawj, tsis ua haujlwm hauv dej. Yog tias yuav tsum ua haujlwm hauv dej, IP68 yuav tsum raug kho |
|
Ob.Product System Block Diagram
Peb.Product Size
