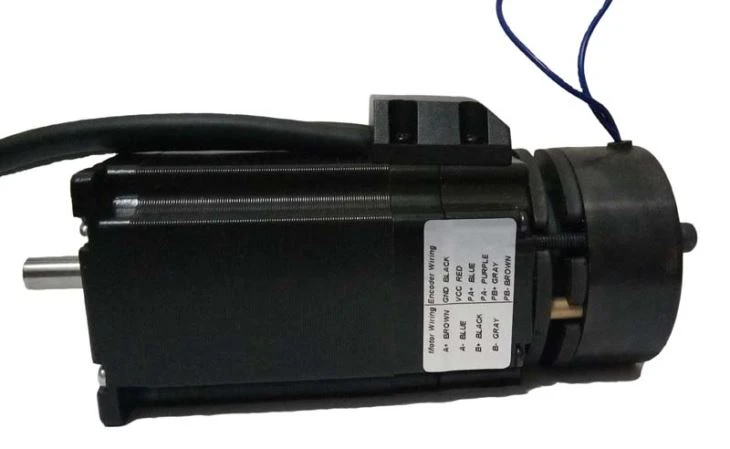

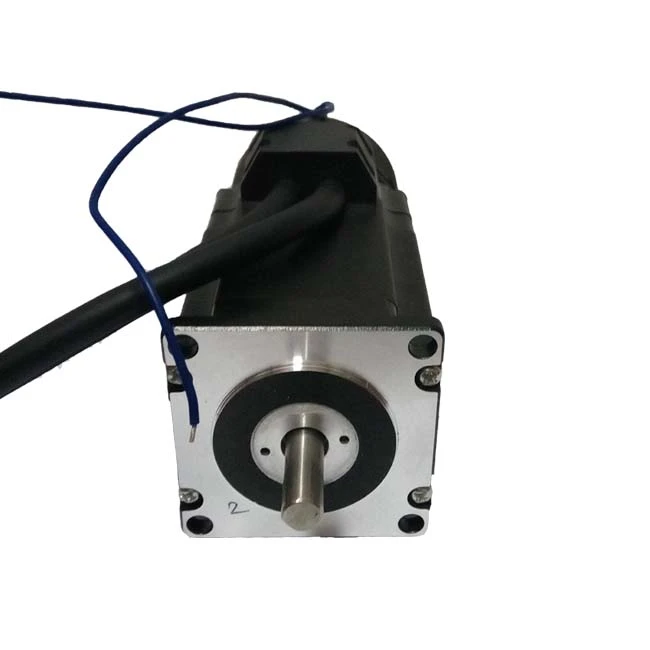

EC57-22BK yog ECON nema23 kaw lub kauj stepper lub cev muaj zog nrog 24VDC nres, thiab tus nres nres yog 2.0Nm, txhawm rau ua raws li cov neeg xav tau ntau yam, peb lub tuam txhab ntxiv yooj yim servo lub cev muaj zog nrog nres khoom hauv muag pob tawb, encoder yog 1000PPR.Nws yuav siv nrog peb cov nyiaj txiag series tsav, TS series, qauv TS808D.
Cov Ntaub Ntawv Khoom Khoom:
| Qauv Tsis Muaj | Tuav Torque (Nm) | Tamsis No (A) | Kev Tawm Tsam | Inductance (MH) | Inertia teb (g.cm2) | Lenght (hli) | Ceeb thawj (kg) | Sib phim tsav | |
| EC57-22BK | 2.4 | 5.6 | 0.4 | 1.5 | 480 | 156 | 1.5 | TS808D |
Cov Qauv Txheej Txheem:
Kauj ruam qhov tseeb: 5%
Tus ntsuas nyiaj: 1000PPR
Kauj Ruam Kaum: 1.8º
Rwb thaiv tsev tsis kam: 500VDC100MΩ Min
Lub zog insulating: 500VAC 50Hz 1mA 1 Min
Qhov ntsuas kub ib puag ncig: -20 ~ + 40ºC
Qhov kub nce ntxiv: 80ºC Max
Thaiv Tsav:
Qhov Loj Lub Cev Muaj Zog:
Qhov kev pabcuam cov khoom:
Shenzhen ECON Technology Co., Ltd. lees paub nws cov khoom lag luam tiv thaiv tsis xws luag ntawm cov ntaub ntawv thiab kev ua haujlwm rau lub sijhawm 12 lub hlis los ntawm kev xa khoom tawm hauv Hoobkas. Thaum lub sijhawm lav, ECON thev naus laus zis yuav yog, ntawm nws txoj kev xaiv, kho lossis hloov cov khoom lag luam uas ua pov thawj tsis zoo.
Tsis suav
Cov kev tiv thaiv saum toj no tsis txuas ntxiv rau ib qho khoom puas vim los ntawm kev siv tsis raug lossis ua tsis tau zoo los ntawm cov qhua tuaj noj mov, tsis tsim nyog lossis tsis zoo ntawm cov neeg siv khoom, tsis muaj kev hloov kho lossis siv tsis raug, lossis kev ua haujlwm dhau ntawm hluav taws xob tshwj xeeb ntawm cov khoom thiab / lossis kev ua haujlwm dhau ib puag ncig kev qhia tshwj xeeb rau cov khoom Cov.
Txais Cov Kev Pab Warranty
Txhawm rau kom tau txais kev pabcuam, daim ntawv tso cai cov khoom xa rov qab (RMA) yuav tsum tau los ntawm cov neeg siv khoom ntawm e-mail: technical01@hybridservo.com ua ntej xa rov qab khoom rau kev pabcuam. Cov neeg siv khoom yuav tsum them ua ntej cov khoom xa tuaj rau cov khoom xa rov qab rau ECON thev naus laus zis rau kev pabcuam tiv thaiv, thiab ECON thev naus laus zis yuav them rau cov khoom xa rov qab rau cov neeg siv khoom.
Cov Kev Txwv Warranty
ECON thev naus laus zis ua rau tsis muaj lwm yam kev ruaj ntseg, qhia tawm lossis siv, nrog rau kev hwm ntawm cov khoom. ECON thev naus laus zis tshwj xeeb tshaj tawm txog kev lav phib xaub ntawm kev ua lag luam thiab kev nyab xeeb rau qee lub hom phiaj. Qee qhov kev txwv tsis pub muaj kev txwv txog qhov yuav kav ntev npaum li cas thiab cuam tshuam kev ruaj ntseg, yog li cov kev txwv dhau los lossis tshem tawm sab nrauv yuav tsis siv rau koj. Txawm li cas los xij, txhua txoj kev lav lus ntawm kev ua lag luam lossis kev nyab xeeb yog tsuas pub rau 12-lub hlis lub sijhawm ntawm daim ntawv lav no.
Kev Them Nyiaj thiab Xa Tawm
ECON txhawb T / T, Paypal, Western Union kom them nyiaj. Peb tuaj yeem npaj nthuav qhia, huab cua thiab hiav txwv cov zaub mov xa tuaj, peb muaj cov kws tshaj lij tuaj yeem nrog logistic.
Cim npe nrov: Nema23 Yooj Yim Servo Tsav 2.4Nm 1000PPR Nrog 24V nres, chaw tsim tshuaj paus, tsum, koom xwm
