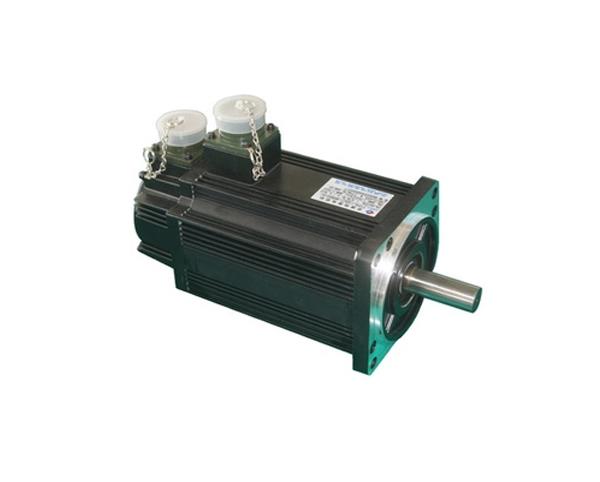

Khoom Taw qhia: AC Servo Tsav nema42 siv nrog AC servo tsav
EC-M series cov hluav taws xob loj uas tsis muaj qhov cub tawg AC servo motors muab cov ntawv thov nrog lub zog loj kom ua tau lub peev xwm ceev thiab muab tso rau qhov chaw nrawm dua. Nema42 series ac servo lub cev muaj zog, lub zog ntau yog los ntawm 0.8 rau 1.8kw, thiab lub zog loj los ntawm 4Nm txog 6Nm, dav siv hauv tshuab CNC, zoo li plasma txiav, CNC milling / tshuab dhos tshuab ect.
Xaiv Khoom thiab Lus Cim:
Qauv | EC- 110M080C | EC- 110M120D | EC- 110M150D | EC- 110M120C | EC- 110M180D | ||||||||||||||||||
Fais fab (W) | 800 | 1200 | 1500 | 1200 | Xyoo 1800 | ||||||||||||||||||
Voltage Rated (V) | 220 | 220 | 220 | 220 | 220 | ||||||||||||||||||
Nyob Tam Sim No (A) | 3.5 | 5 | 6 | 4.5 | 6 | ||||||||||||||||||
Cov Rated Ceev (RPM) | Xyoo 2000 | 3000 | 3000 | Xyoo 2000 | 3000 | ||||||||||||||||||
Tuav Torque (Nm) | 4 | 4 | 5 | 6 | 6 | ||||||||||||||||||
Ncov Torque (Nm) | 12. 12s | 12. 12s | 15 15 | 12. 12s | 18 18 | ||||||||||||||||||
Voltage qhov tsis tu ncua (V / 1000 * RPM) | 79 | 54 | 62 | 83 | 60 | ||||||||||||||||||
Torque Coefficient (Nm / A) | 1.14 | 0.8 | 0.83 | 1.3 | 1 | ||||||||||||||||||
Rotor inertia (kg.㎡) | 0.54x10-³ | 0.54x10-³ | 0.63x10-³ | 0.76x10-³ | 0.76x10-³ | ||||||||||||||||||
Kab-Kab Tawm (Q) | 2.41 | 1,09 | 1,03 | 1.46 | 0.81 | ||||||||||||||||||
Kab-Kab Kev Nyuaj Siab (mH) | 7.3 | 3.3 | 3.43 | 4.7 | 2,59 | ||||||||||||||||||
Lub sijhawm hluav taws xob-tas mus li (Ms) | 3 | 3 | 3.33 | 3.2 | 3.2 | ||||||||||||||||||
Ceeb thawj (kg) | 6 | 6 | 6.8 | 7.9 | 7.9 | ||||||||||||||||||
Saib tus naj npawb kab (PPR) | 2500 | ||||||||||||||||||||||
Kev rho tawm chav kawm | Chav Kawm B | ||||||||||||||||||||||
Chav Kawm Kev Nyab Xeeb | IP65 | ||||||||||||||||||||||
Siv Ib puag ncig | Kev ntsuas kub: -20 ℃ ~ + 40 ℃, Vaum Hauv qab 90% RH Tsis muaj dej paug | ||||||||||||||||||||||
Lub cev muaj zog fais fab Plug | Hlau Hlau Txhuas | U | V | W | PE | ||||||||||||||||||
Pin TSIS TAU. | 2 | 3 | 4 | 1 | |||||||||||||||||||
Encoder Plug | Hlau Hlau Txhuas | 5V | 0V | A + | B + | Z + | A- | B- | Z- | U + | V + | W + | U- | V- | W- | PE | |||||||
Pin TSIS TAU. | 2 | 3 | 4 | 5 | 6 | 7. Peb muaj 7 | 8. 8 | 9. 9 | 10 | 11. 11 | 12. 12s | 13. 13 | 14 14 | 15 15 | 1 | ||||||||
Qhov loj me khoom:
Qauv | EC-110M080D | EC-110M120D | EC-110M150D | EC-110M120C | EC-110M180D |
L (tsis muaj nres) | 189 | 189 | 204 | 219 | 219 |
L (nrog rau Nres tas mus li) | 245 | 245 | 260 | 275 | 275 |
L (nrog electromagnetic nres) | 263 | 263 | 278 | 293 | 293 |
Matched Tsav | ECN-GA3210B | ECN-GA3210B | ECN-GA3215B | ECN-GA3210B | ECN-GA3215BF |
Cable rau kev xaiv | (Mem tes cable) Tswj kav rau tus tsav tsheb | 3-10M rau kev xaiv | |||
(Encoder cable) Encoder rau tsav | |||||
(Lub fais fab cable) Tsav rau cov tsav tsheb | |||||
Khoom Installation:
1: Kev teeb tsa / cov khoom siv sib cais ua ke txuas rau lub cev muaj zog lub ntsej muag kawg, tsis txhob tsoo lub zog sib tsoo kom tiv thaiv lwm sab ntawm lub cev muaj zog ncej encoder tau muab tua tsis zoo.
2: Siv zog ua kom zoo tshaj plaws ntawm nws tus ncej txhawm rau tiv thaiv kev co thiab ua rau muaj kev puas tsuaj.
Qhov kev pabcuam cov khoom:
ECON muab kev pabcuam technical los ntawm pib kom txog thaum kawg, thiab yuav muab kev tiv thaiv ib xyoos. Txhua qhov teeb meem, tuaj yeem xa e-mail rau peb tus kws tshaj lij tshuab thiab kev muag khoom, lossis sib tham ncaj qha ntawm peb lub vev xaib.
Them nyiaj thiab xa tawm:
ECON txhawb T / T, Paypal, Western Union kom them nyiaj. Peb tuaj yeem npaj nthuav qhia, huab cua thiab hiav txwv cov zaub mov xa tuaj, peb muaj cov kws tshaj lij tuaj yeem nrog logistic.
